Description

Technical Parameters

Mould Specifications

Mould name	Single-face Pallet Mould
Product material	HDPE, plastic
Product Size	1100x1100x150mm
Product weight	10.2 kgs
Mould material for cavity &. Core	P20
Mould base	C45
Injection system	Hot runner
Suitable injection machine	2400T
Mould size	2245x2290x998mm
Mould lifetime	more than 300,000pcs

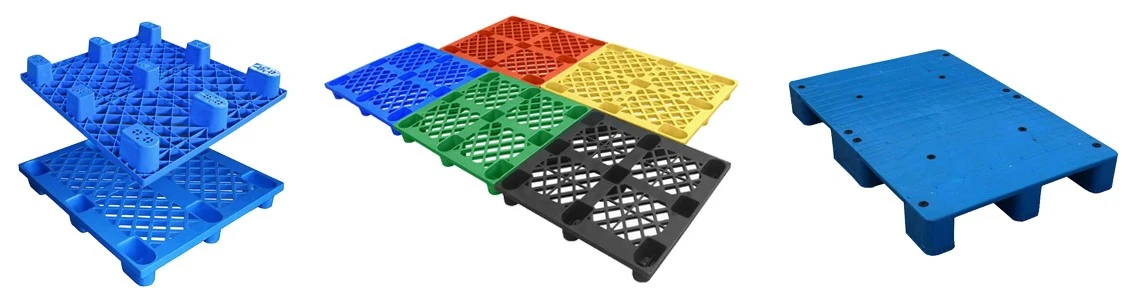

9 Feet Flat Single-face Plastic Pallets Mould

A 9 Feet Flat Single-Face Pallet Mould is a specialized injection mold designed to produce large, one-sided plastic pallets (approximately 2.74 meters long) with a flat, smooth bottom and a structured top surface (e.g., anti-slip texture, reinforced ribs, or drainage channels). These pallets are widely used in heavy-duty logistics, aerospace, construction, and industrial storage where oversized, lightweight, and durable load-handling solutions are required.

Key Features of the Mould:

Single-Face Design:

Top Side: Molded with features like ribs, grooves, or anti-slip patterns for load stability.

Bottom Side: Flat and smooth for easy stacking, conveyor compatibility, and stability on floors.

Massive Size & High Tonnage:

Requires an industrial injection molding machine with 1,000+ tons clamping force due to the large surface area.

Mold weight can exceed 5–10 tons, typically made from hardened steel (P20, H13, or S136) for longevity.

Reinforced Structure:

Thick walls & strategic ribbing to support heavy loads (e.g., 10,000–20,000 lbs dynamic capacity).

May include metal inserts for forklift entry points or additional reinforcement.

Efficient Cooling System:

Conformal cooling channels to prevent warping and reduce cycle time (critical for large parts).

Material Options:

HDPE (High-Density Polyethylene) – Best for durability and impact resistance.

PP (Polypropylene) – Lightweight and chemical-resistant.

Reinforced Plastics (GF-PP/GF-Nylon) – For extreme load-bearing needs.

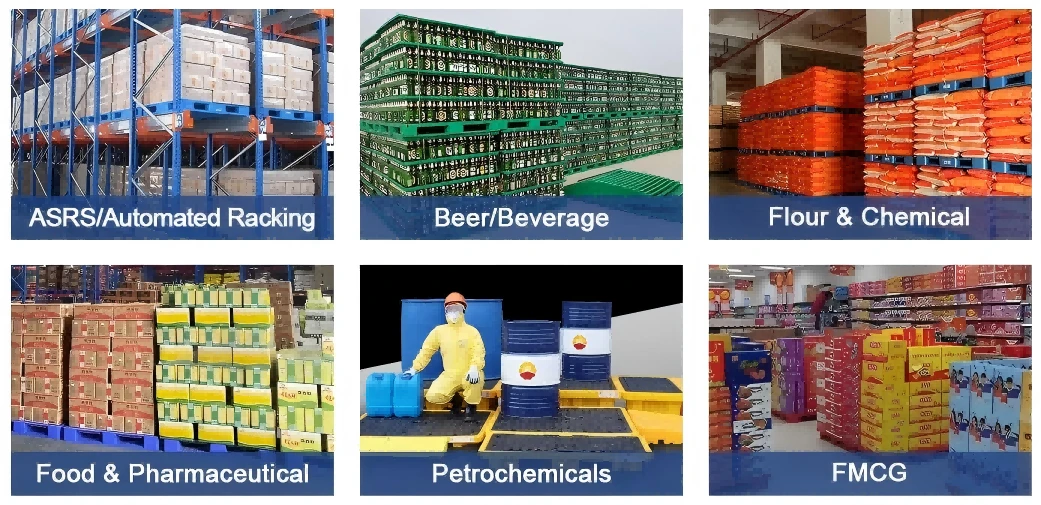

Application of Pallets

1. Aerospace & Aviation Industry

Transporting large aircraft components (wings, fuselage sections, engine parts).

Assembly line handling – Smooth bottom ensures easy movement in manufacturing plants.

Export packaging – Lightweight yet strong enough for secure international shipping.

2. Automotive & Heavy Machinery

Oversized automotive parts (windshields, body panels, chassis, engines).

Robotic assembly lines – Flat bottom works with conveyor systems.

Warehousing of heavy components (axles, transmissions).

3. Construction & Building Materials

Handling large pipes, steel beams, and concrete panels.

Transporting heavy machinery (excavators, generators).

Modular construction logistics – Prefabricated walls, roofing sheets.

4. Shipping & Export Logistics

Oversized cargo containers (machinery, industrial equipment).

Intermodal transport (compatible with ships, trucks, and rail).

Customs-friendly – No ISPM-15 treatment needed (unlike wood).

5. Food, Pharma & Cold Chain Logistics

Bulk food transport (large meat cuts, dairy, produce).

Pharmaceutical raw materials (hygienic, easy to sanitize).

Cold storage compliance (freezer-safe, no moisture absorption).

6. Military & Defense Logistics

Heavy weaponry & equipment transport.

Overseas deployment supplies (resistant to harsh climates).

Modular storage systems (nestable for space efficiency).

Why Choose HDPE/PP To Produce Single-face Pallets?

1. Key Benefits of HDPE for Single-Face Pallets

>Superior Impact Resistance & Durability

HDPE is tougher and more rigid than PP, making it ideal for heavy loads (e.g., aerospace, construction).

Resists cracking in cold temperatures (down to -50°C).

>Excellent Moisture & Chemical Resistance

Impermeable to water (no swelling or rotting like wood).

Resists oils, acids, and alkalis-ideal for automotive, chemical, and food industries.

>Longer Lifespan

More wear-resistant than PP, leading to 5–10+ years of use even in harsh conditions.

>Easier to Clean & Sanitize

Smooth, non-porous surface-FDA/USDA-compliant for food and pharmaceutical use.

2. Key Benefits of PP for Single-Face Pallets

>Lighter Weight & Cost-Effective

PP is 10–15% lighter than HDPE, reducing shipping costs.

Generally cheaper per unit, ideal for budget-conscious buyers.

>Better Fatigue Resistance

Withstands repeated bending/flexing without cracking-good for nestable/stackable pallets.

>Higher Heat Resistance

Can handle short-term exposure up to 100°C (vs. HDPE's 80°C limit).

Suitable for hot-washed pallets in food processing.

>Chemical Resistance (Different Profile Than HDPE)

Better against organic solvents (e.g., acetone, ethanol).

Used in pharmaceutical and laboratory environments.

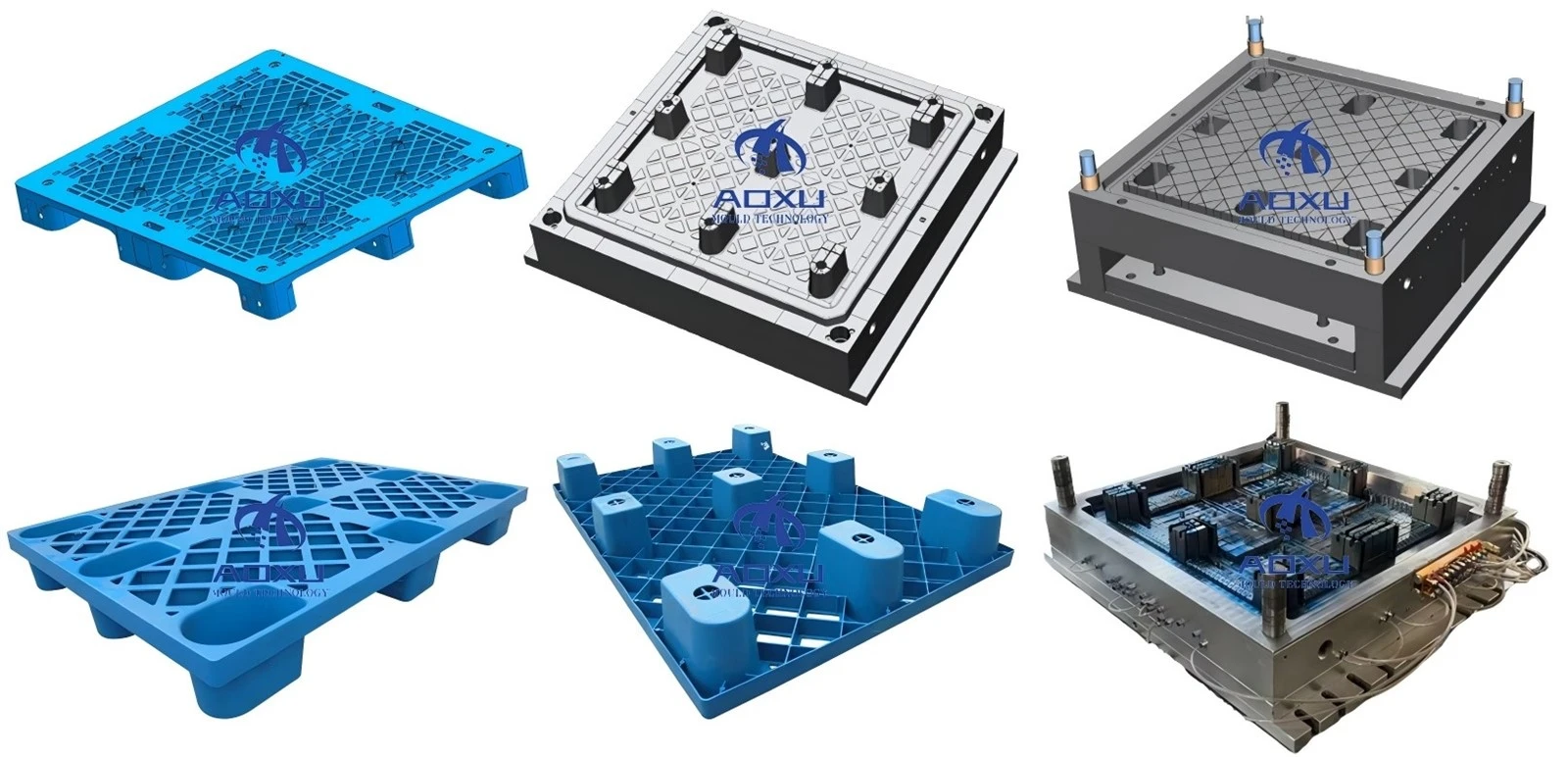

Design For Product &. Mould

Package &. Delivery

Mould Components

Mould Steel

Hot Runner System

Standard Parts

How We Control Single-face Pallet Mould Quality?

To ensure the quality of single-face pallet moulds, we implement a strict quality control process throughout the manufacturing and production stages. Here are some of the ways we ensure top-notch quality for our single-face pallet moulds:

1. Use of High-Quality Materials: We only use high-quality materials in the manufacturing of our single-face pallet moulds. This helps to ensure the durability and longevity of the moulds.

2. Precision Machining: Our moulds undergo precision machining processes to ensure that each component is accurately and precisely cut to the required specifications. This helps to prevent any defects or inaccuracies in the final product.

3. Quality Inspection: Throughout the manufacturing process, our team conducts rigorous quality inspections to check for any defects or imperfections. This helps to ensure that only the highest quality moulds are produced.

4. Testing and Validation: Before the single-face pallet moulds are released for production, they undergo extensive testing and validation to ensure that they meet all performance requirements and standards.

5. Continuous Improvement: We are constantly striving to improve our manufacturing processes and techniques to enhance the quality of our single-face pallet moulds. This includes investing in new technologies and equipment to ensure that we are producing top-quality products.

Overall, by implementing these quality control measures, we can ensure that our single-face pallet moulds meet the highest standards of quality and performance. Our commitment to excellence and continuous improvement allows us to deliver superior products to our customers.

FAQ

>1. What are the advantages of using single-face pallets?

Single-face pallets are lighter, more cost-effective, and easier to handle compared to traditional double-face pallets. They are also more versatile and can be easily customized to meet specific requirements.

>2. Can your Company customize pallet moulds?

Yes, we can customize pallet moulds according to the specific requirements of our customers. Our experienced design team can work closely with you to develop a pallet mould that meets your unique needs.

>3. What materials are used in the manufacturing of single-face pallet injection moulds?

We use high-quality mould steel such as P20/718H/S136/H13 to ensure the durability and longevity of our pallet moulds. These materials are also corrosion-resistant and can withstand the rigors of heavy-duty industrial use.

>4. What is the production lead time for single-face pallet injection moulds?

The production lead time for single-face pallet injection moulds can vary depending on the complexity of the design and the quantity required. Typicaly it takes about 55-65days for T1.

>5. Can Single-face Pallet Injection Mould Company provide installation and training services?

Yes, we can provide installation and training services for our customers to ensure that the pallet moulds are properly installed and used. Our team will work closely with you to ensure a seamless and efficient installation process.

>6. What's the payment terms?

We will confirm the payment with you when quoting, such as FOB, CIF, CNF ect. In batch production, we accept 40% deposit, balance before shipping moulds. T/T is the main payment, and L/C is acceptable as well.

>7. How can I get a quote for a custom pallet mould from Single-face Pallet Injection Mould Company?

You can contact us directly through our website or email to request a quote for a custom pallet mould. Our team will review your specifications and provide you with a competitive quote in a timely manner.

Customers' Feedback
